OPUS PMD 70

Price: 11.500,- Euro

HIGHLIGHTS
  • Limited to 99 pieces
  • Hand painted moon phase, date indication
  • Anti-reflective, U-shaped mineral glass
SIMPLE AND GRACEFUL IN THE HIGHEST MEASURE, FUNCTIONAL IN BEST MANUFACTORY QUALITY

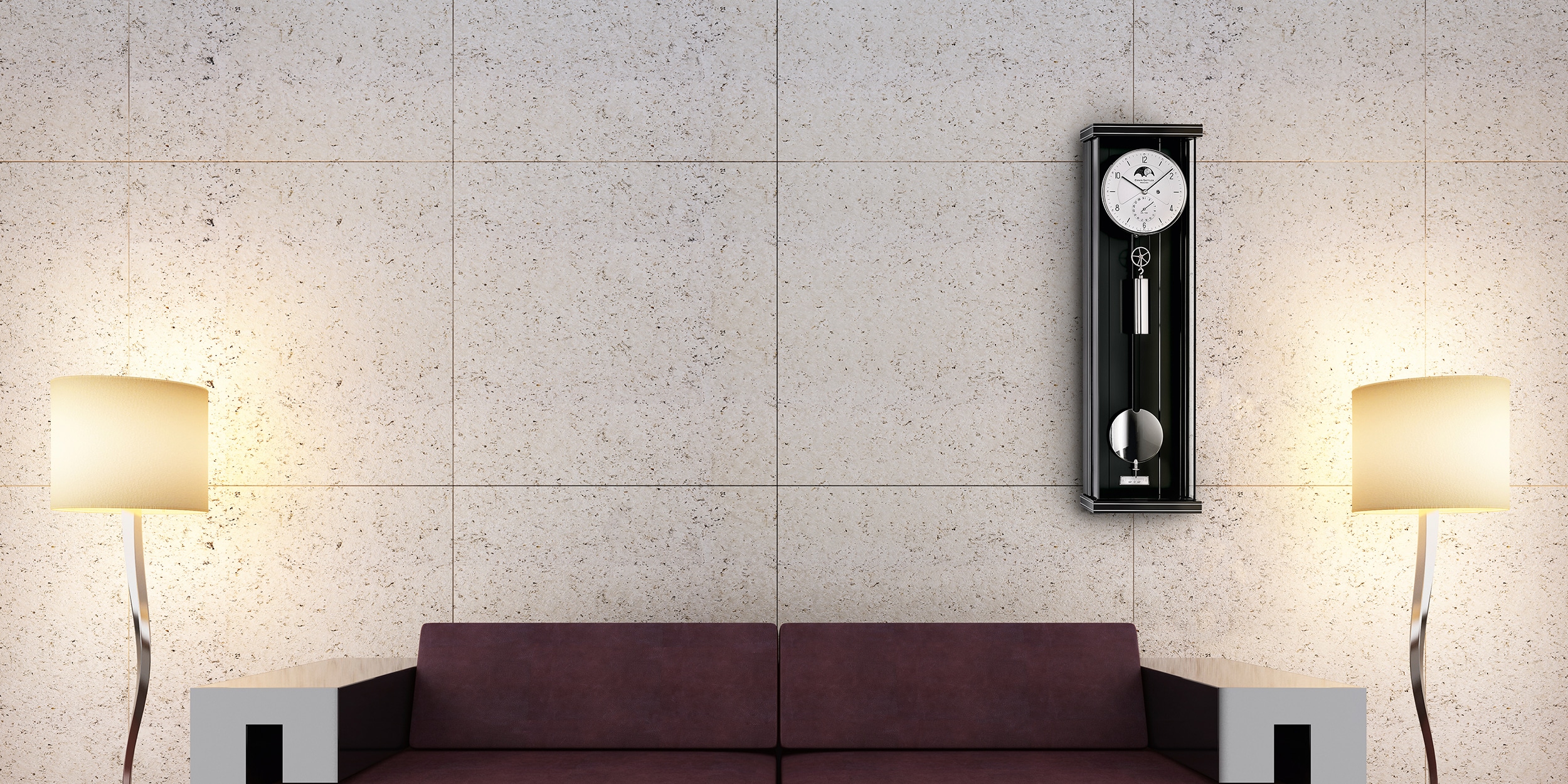

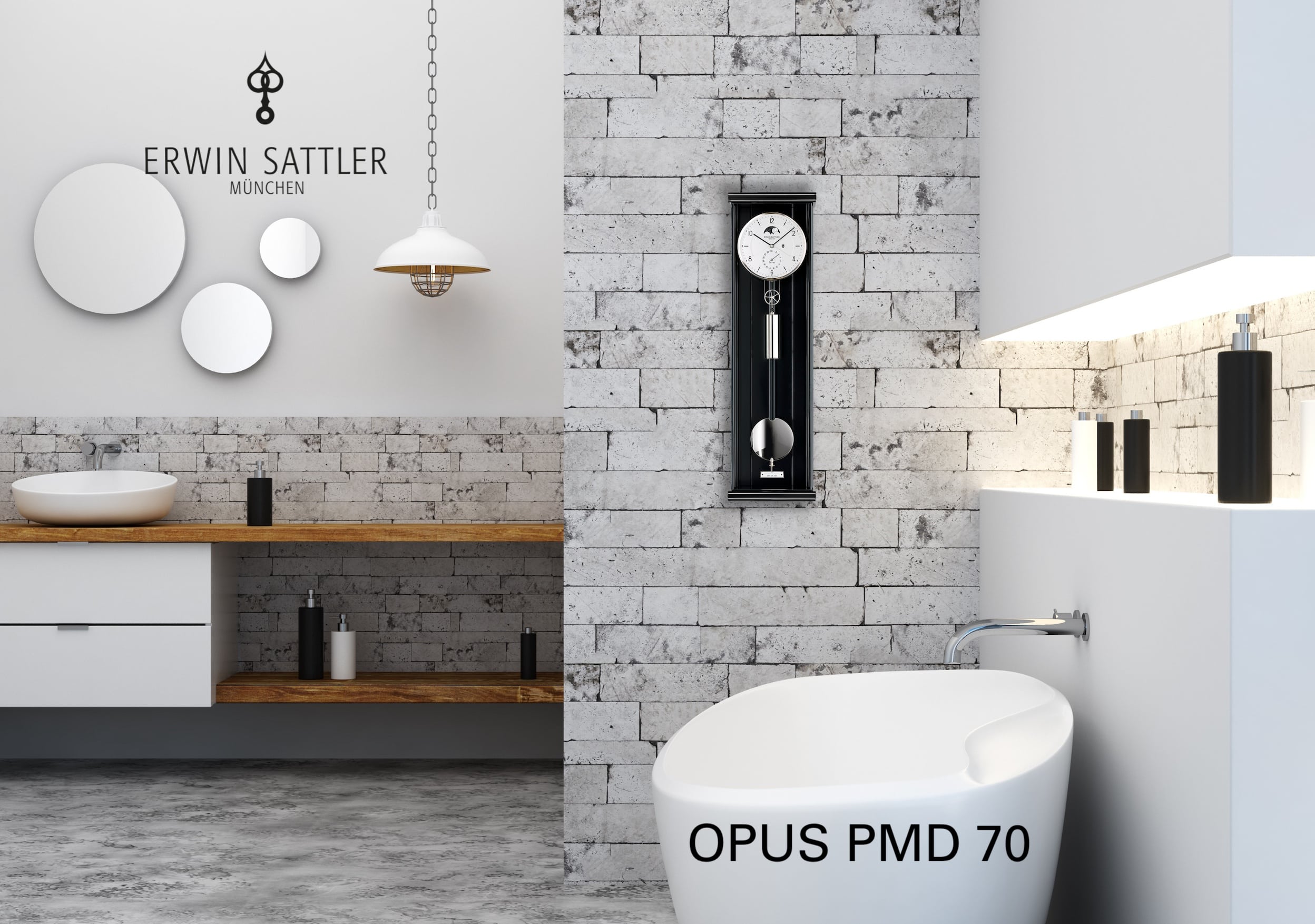

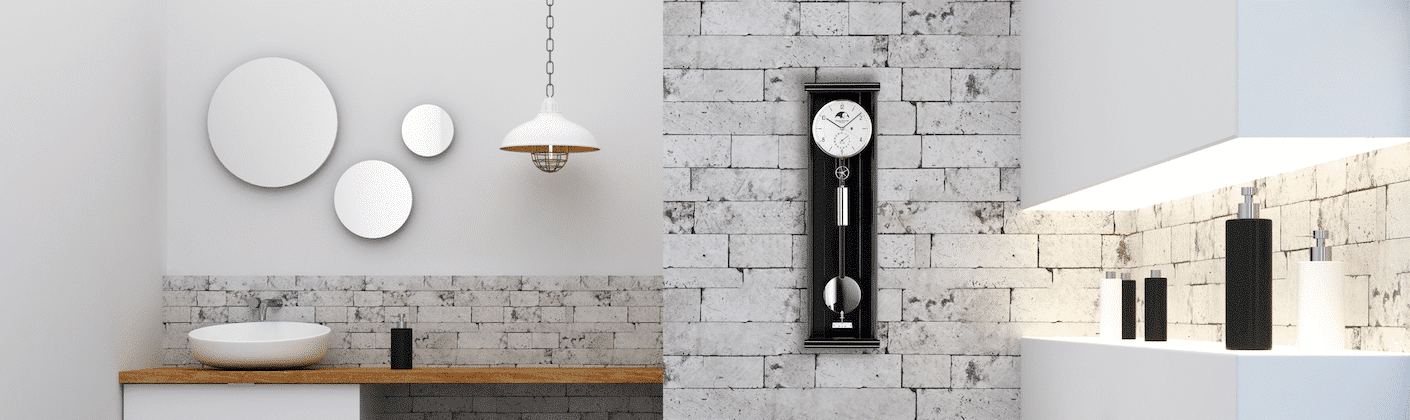

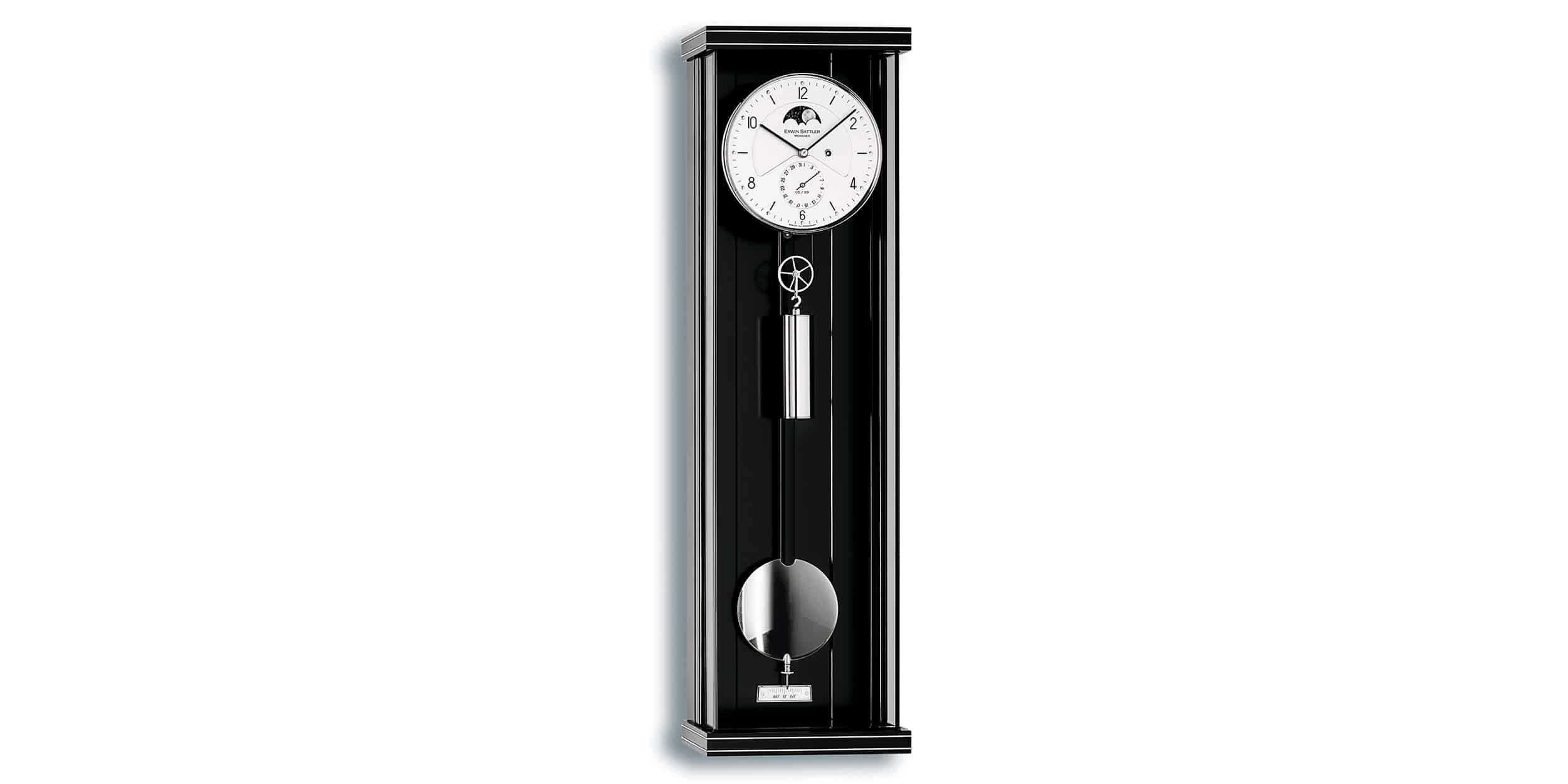

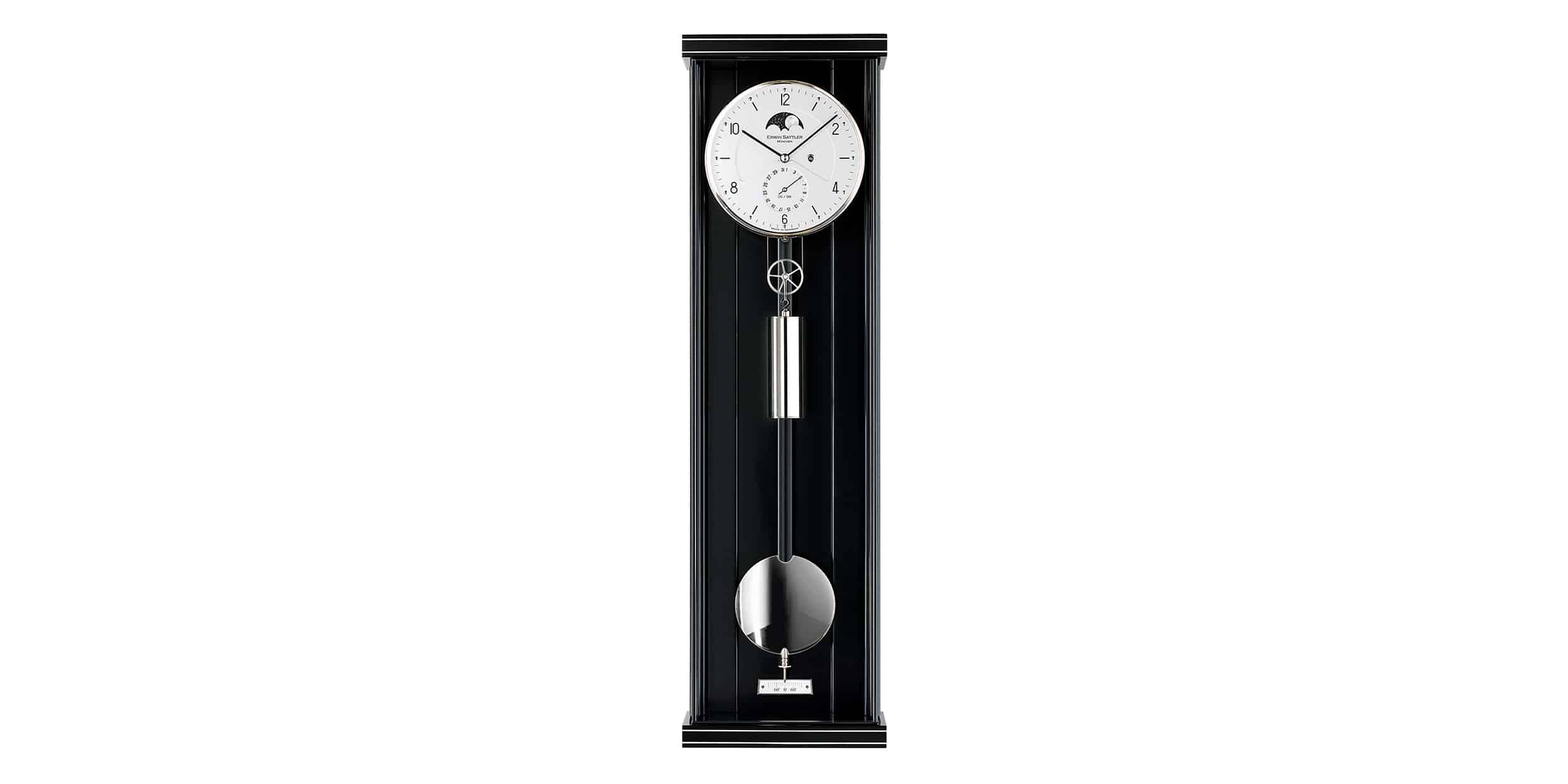

Measuring just 70 centimetres in height, this fine pendulum clock will find a dignified spot almost anywhere. Its wooden case comes in black thanks to its elaborate varnish. High-quality metal inlays are included as decorative elements. The anti-reflective mineral glass allows a completely unhindered look at the dial, hands, movement and pendulum.

Read more
Brochure
Listen to the passing strike
Watch video
Contact us
CaseBlack varnish with metal inlays, door with magnetic closure, hidden compartment for the crank in the base
Height: 70 cm, width: 20 cm, depth: 10 cm

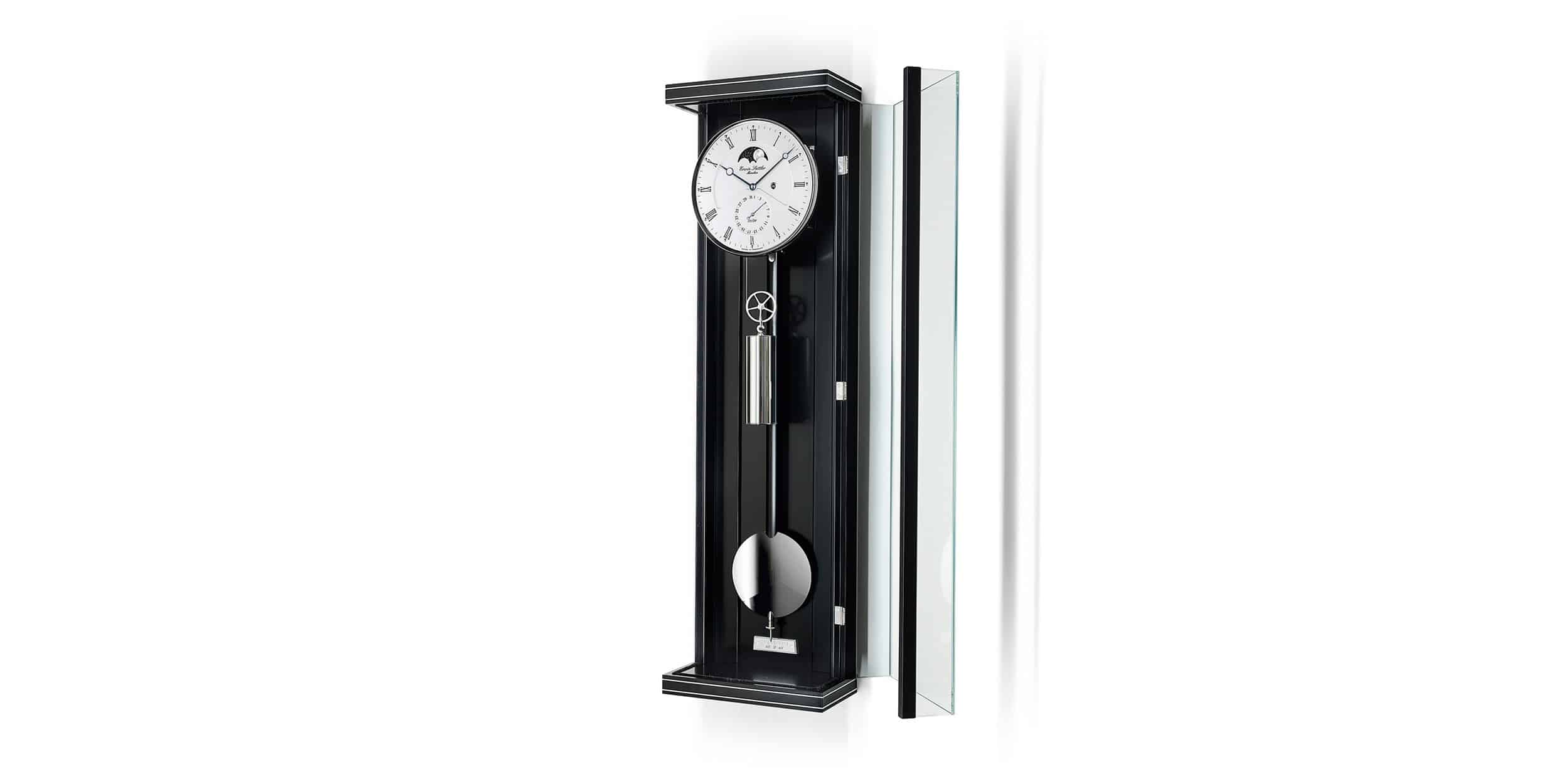

CrystalsU-shaped mineral glass, anti-reflective
MovementSattler calibre 1412
Power reserve7 days
DriveWeight 1,000 g with pulley
OscillatorWood rod pendulum with solid, turned brass pendulum bob, polished and nickel-plated
Ball bearings2 precision ball bearings
Jewel bearings7
DialAluminium, anodized, numbered, hand-painted moon disc, roman or arabic indexes, display of date
HandsBlue steel hands
Strike trainPassing strike, strike train silencer
Beat rate5.184/h
Weight 8 kg
Limited and numbered each to 99 pieces

Opus PMD 70 brochure

alt=""

Listen to the passing strike

CALCULATION OF THE MOON PHASE DISPLAY

Month
Date
Year
Calculate
Reset To Default

FULL MOON CALENDAR

13. Jan

12. Feb

14. Mar

13. April

12. May

11. June

10. July

9. Aug

7. Sept

7. Oct

5. Nov

5. Dec

Opus PMD 70

SIMPLE AND GRACEFUL IN THE HIGHEST MEASURE, FUNCTIONAL IN BEST MANUFACTORY QUALITY

The remarkable range of premium-quality features continues with the manufacture movement. Smooth running of the gear train is ensured by two precision ball bearings and seven jewels made from synthetic ruby. The inclusion of a classic Graham escapement is a given for the calibre 1412.

The time display is complemented by a pleasant passing strike. The flow of time is divided by a high-quality wood rod pendulum with a solid brass bob, which produces exactly 5,184 half oscillations per hour. The beautiful two-piece dial is made from aluminium.

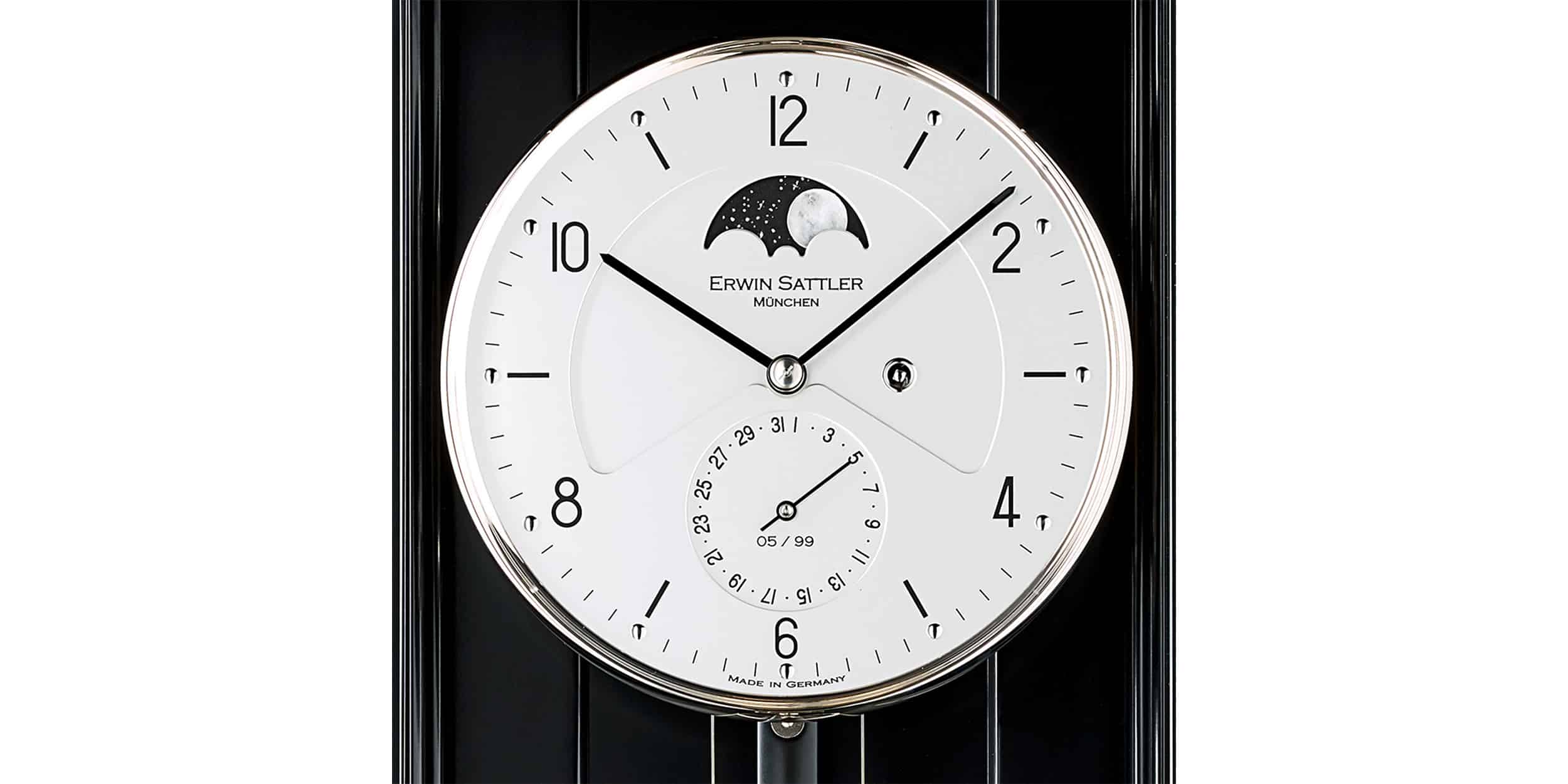

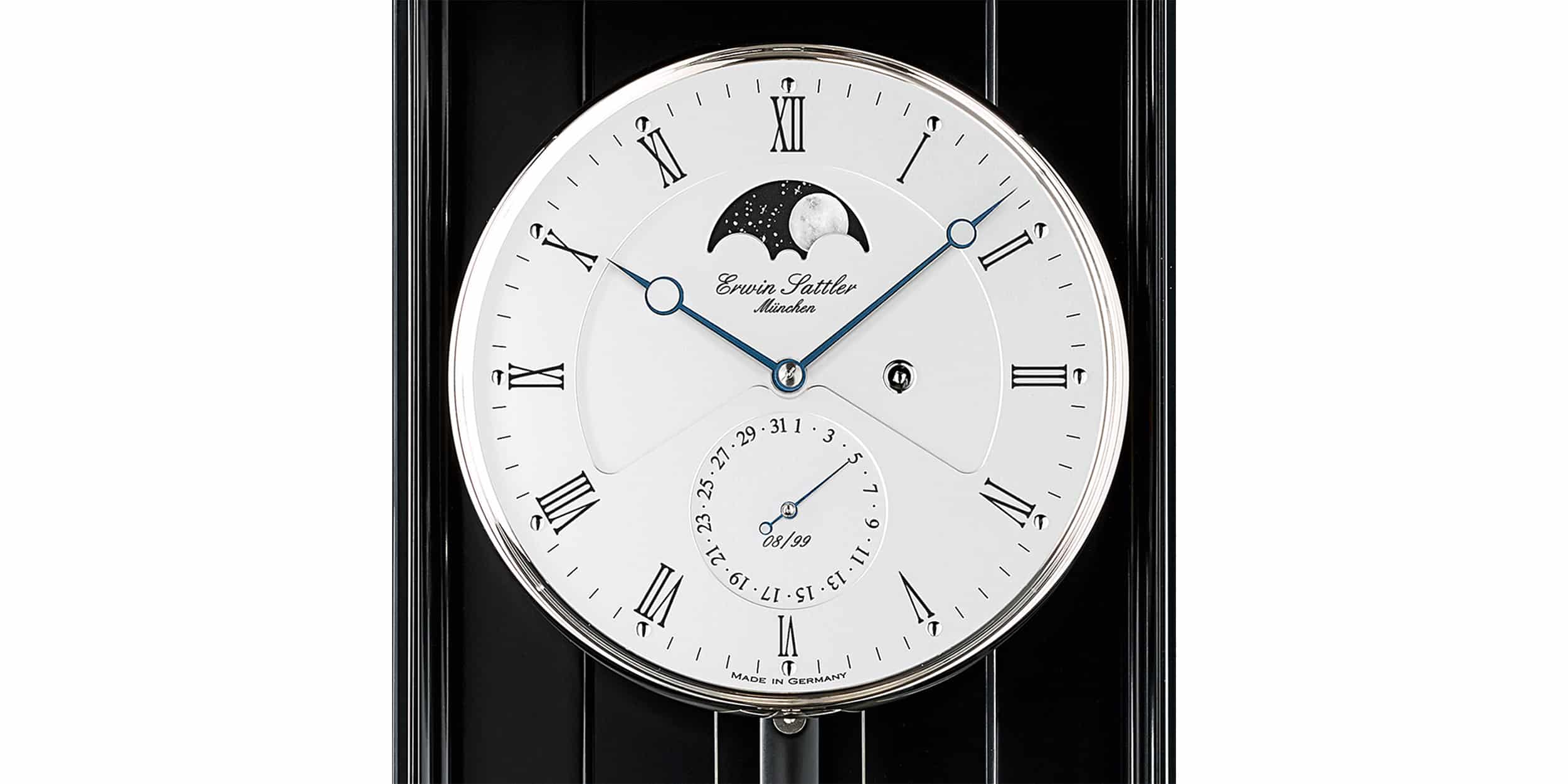

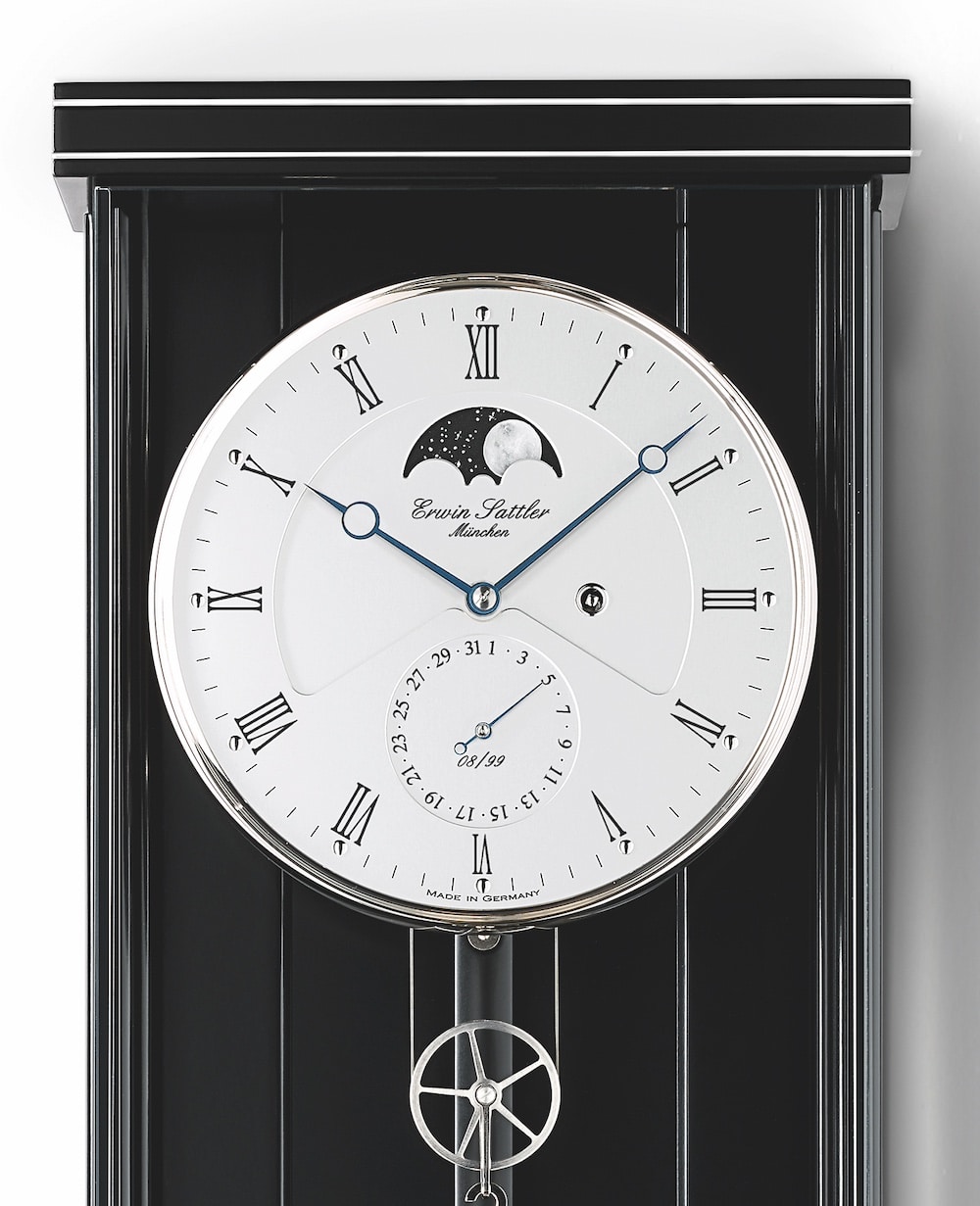

In addition to the roman or optional arabic hour digits, 12 applicated and polished indexes shine on the dial. Below the “12”, the moon phases can be read via a hand-painted disk. The noble dial is completed by a date display above the “6”.

This table shows the available design options

You can see the differences between the three possible case variants here

Casing Timbers Set Dial variants Dial material
  black
sanding varnish 		black
sanding lacquer with
Makassar-
cassette 		Cherry
tree 		Birdseye-
maple 		Yew Brass nickel-plated roman arabic modern
arabic 		Enamel silver-plated anodized
Opus housing
Graziosa 60
•
–
–
–
–
–
•
–
–
•
–
–
•
Opus PM70II
•
–
–
–
–
–
•
–
–
•
–
–
•
Opus PMD 70
•
•
–
–
–
–
•
•
–
–
–
–
•
 Aperia S70
•
•
–
–
–
–
•
•
–
–
–
–
•
 Opus PMD100
•
•
–
–
–
–
•
–
–
–
–
–
•
 Aperia III
•
–
–
–
–
–
•
–
–
–
–
–
•
•
 Available as standard
+
 possible on request
–
 not possible
Casing Timbers Set Dial variants Dial material
  black
sanding varnish 		black
sanding lacquer with
Makassar-
cassette 		Cherry
tree 		Birdseye-
maple 		Yew Brass nickel-plated roman arabic modern
arabic 		Enamel silver-plated anodized
Classica case
 60
•
–
•
+
+
•
•
•
•
•
•
–
–
S 70
•
+
+
•
+
•
•
•
•
•
•
–
–
K 100
•
+
+
+
•
•
•
•
–
–
–
•
–
S 100
•
+
+
+
•
•
•
•
–
•
•
–
–
KS 100
•
+
+
+
•
•
•
•
–
•
–
•
–
•
 Available as standard
+
 possible on request
–
 not possible
Casing Timbers Set Dial variants Dial material
  black
sanding varnish 		black
sanding lacquer with
Makassar-
cassette 		Cherry
tree 		Birdseye-
maple 		Yew Brass nickel-plated roman arabic modern
arabic 		Enamel silver-plated anodized
Classica M housing
60M
•
•
+
+
+
–
•
•
•
•
•
–
–
K 70 M
•
•
+
+
+
–
•
•
–
•
–
–
•
P 70 M
•
•
+
+
+
–
•
•
•
•
•
–
–
S 70 M
•
•
+
+
+
–
•
•
•
•
•
–
–
K 100 M
•
•
+
+
+
–
•
•
–
–
–
•
–
KS 100 M
•
•
+
+
+
–
•
•
–
•
–
•
–
S 100 M
•
•
+
+
+
–
•
•
–
•
•
–
–
S 130 M
•
•
+
+
+
–
•
•
–
•
•
–
–
K 130 M
•
•
+
+
+
–
•
•
–
–
–
•
–
 KS 100 M
•
•
+
+
+
–
•
•
–
•
–
•
–
KS 130 M
•
•
+
+
+
–
•
•
–
•
–
•
–
•
 Available as standard
+
 possible on request
–
 not possible


Die Gangdauer der OPUS PMD 70 beträgt 7 Tage, als Gangregler dient ein Holzstabpendel mit massiver gedrehter Messinglinse, poliert und vernickelt.

Die OPUS PMD 70 hat die folgenden Maße: Höhe: 70 cm, Breite: 20 cm, Tiefe: 10 cm.

Die OPUS PMD 70 hat ein Schlagwerk.
