Troja Sonata M
Price: 146.600,- Euro
HIGHLIGHTS
- Pendulum clock with second, Pendulum with temperature air-pressure compensation,
- 16 extendible watch winders

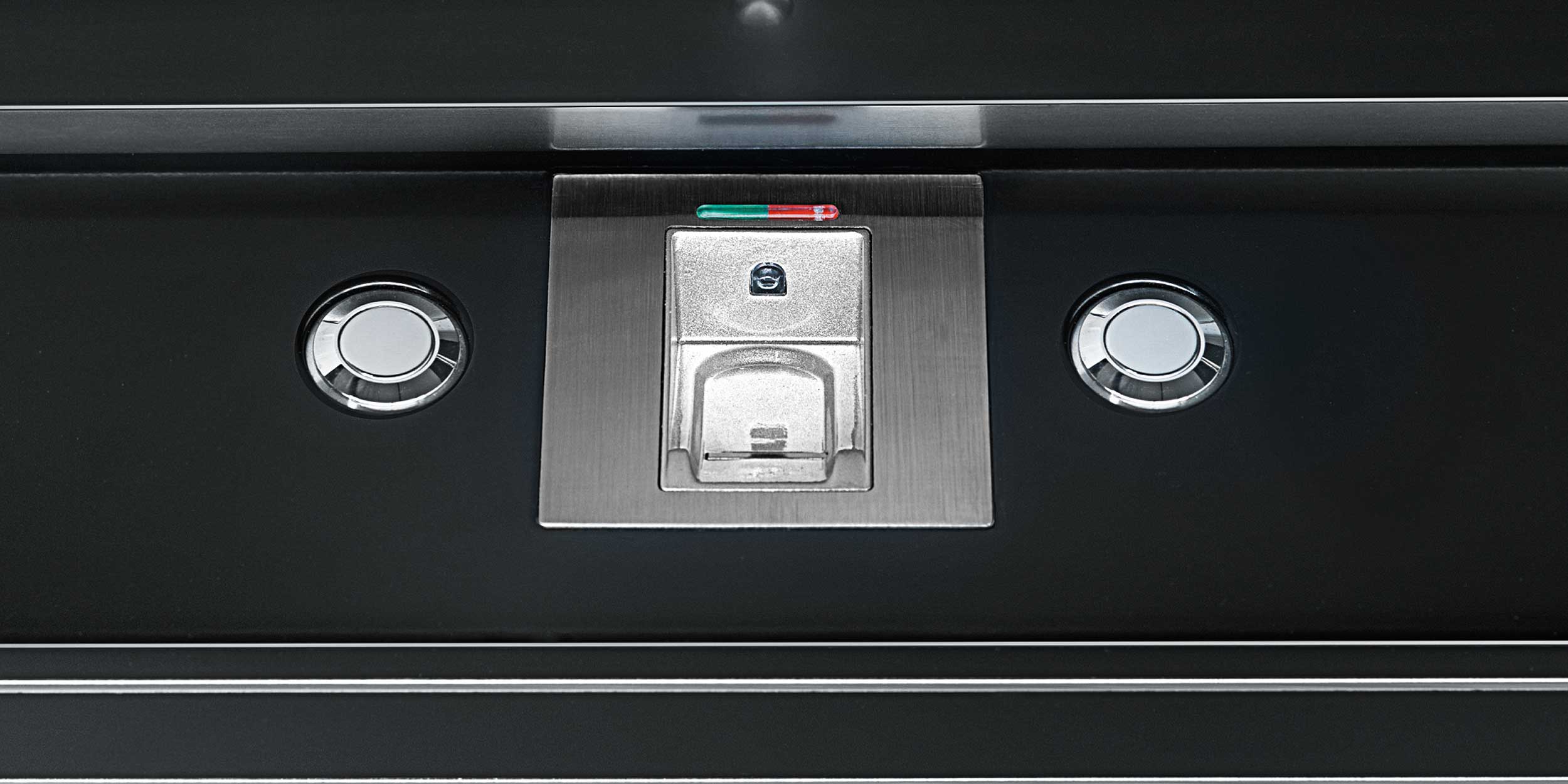

- Hidden safe in the base, fingerprintreader
- Watch holder variants for different strap lengths
TREASURES ARE KEPT SAFE AND HIDDEN INSIDE A FASCINATING AND IMPRESSIVE PRECISION PENDULUM CLOCK

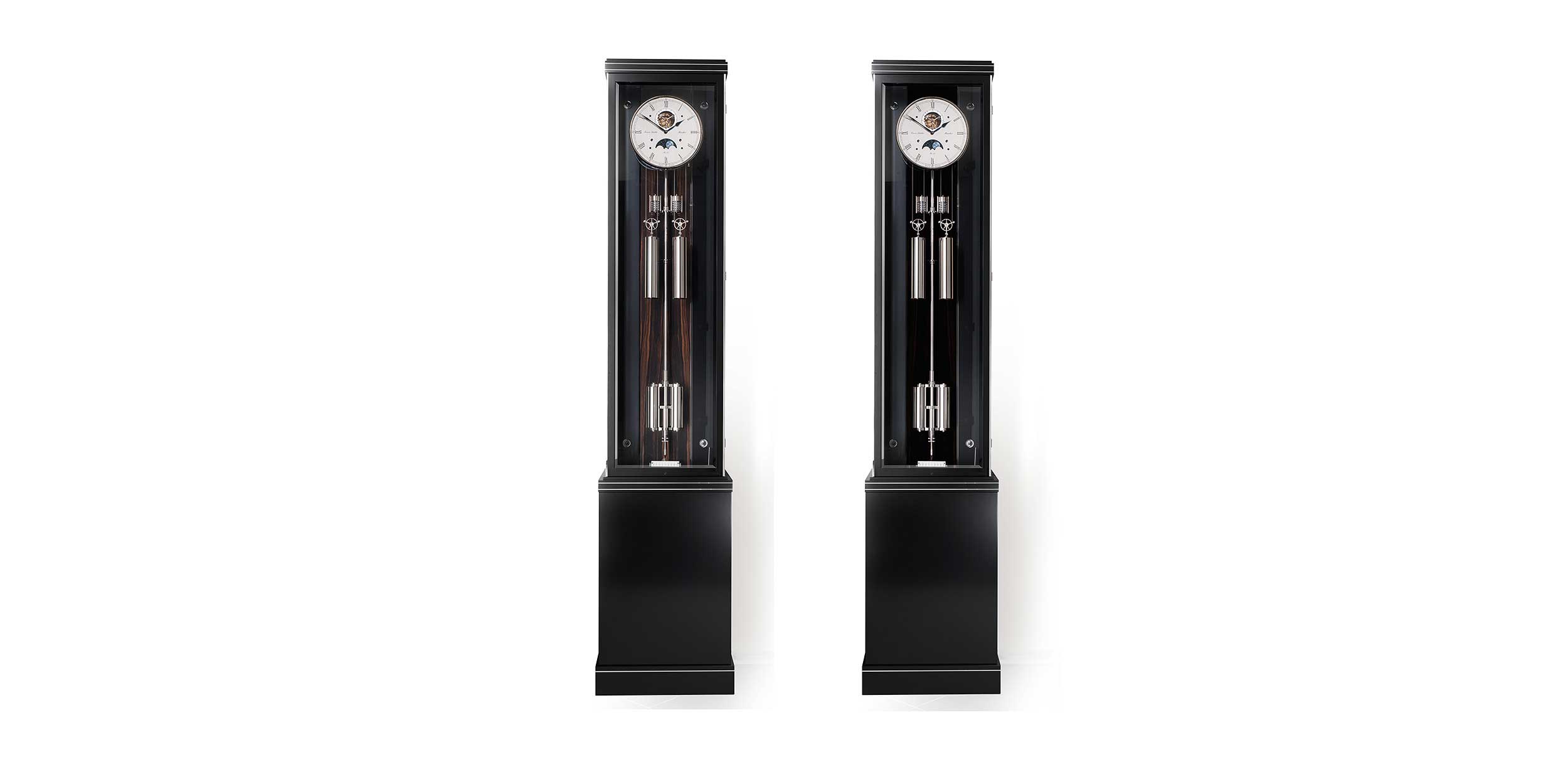

| Case | - Black varnish with metal inlays - Black varnish with macassar cassette and metal inlays Height: 218 cm, width: 48 cm, (watch winders extended: 70 cm), depth: 39 cm, requires wall mounting at the dial height Door with magnetic closure |
| Weight | 240 kg |
| Crystals | Bevelled mineral glass |

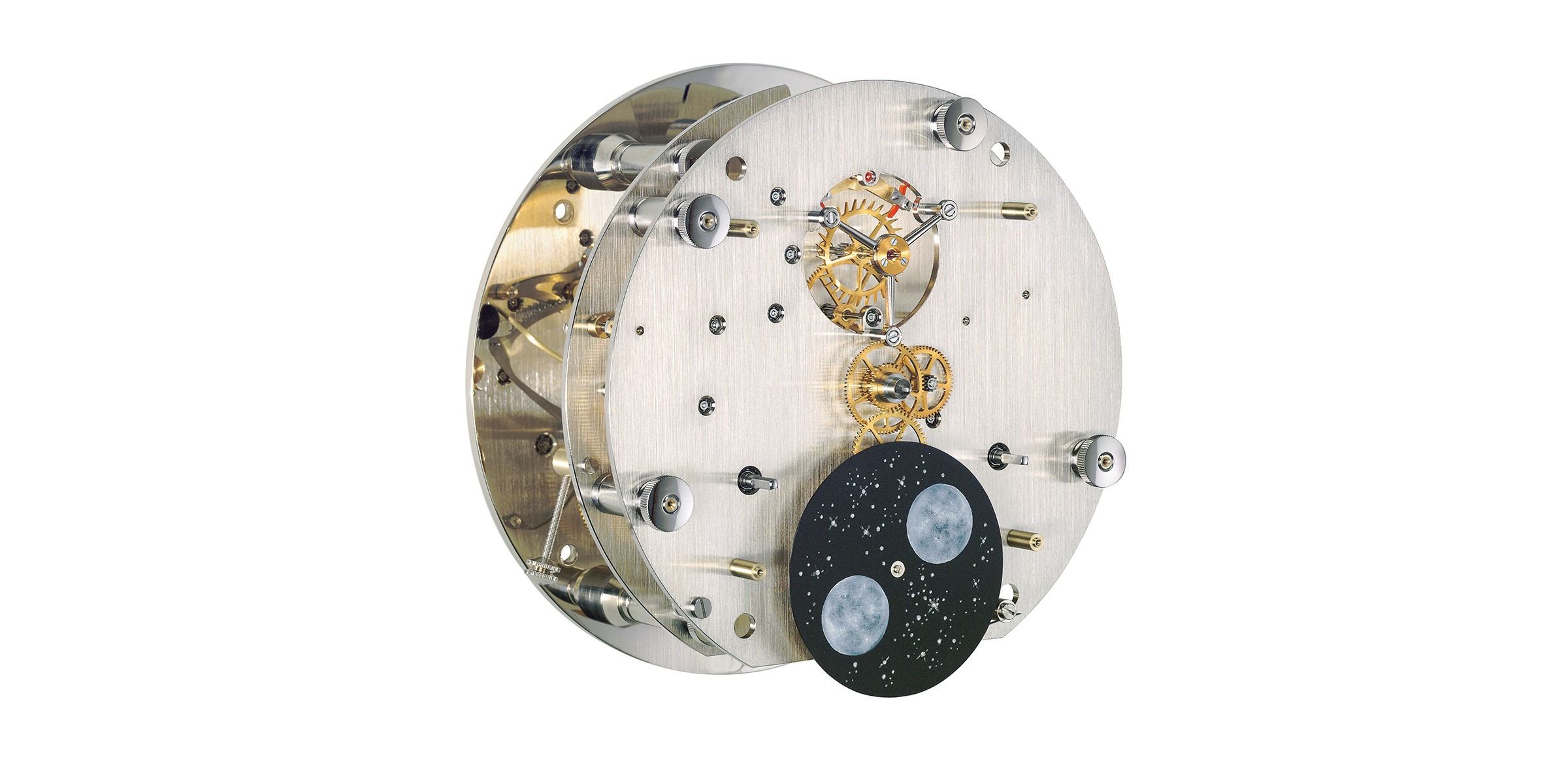

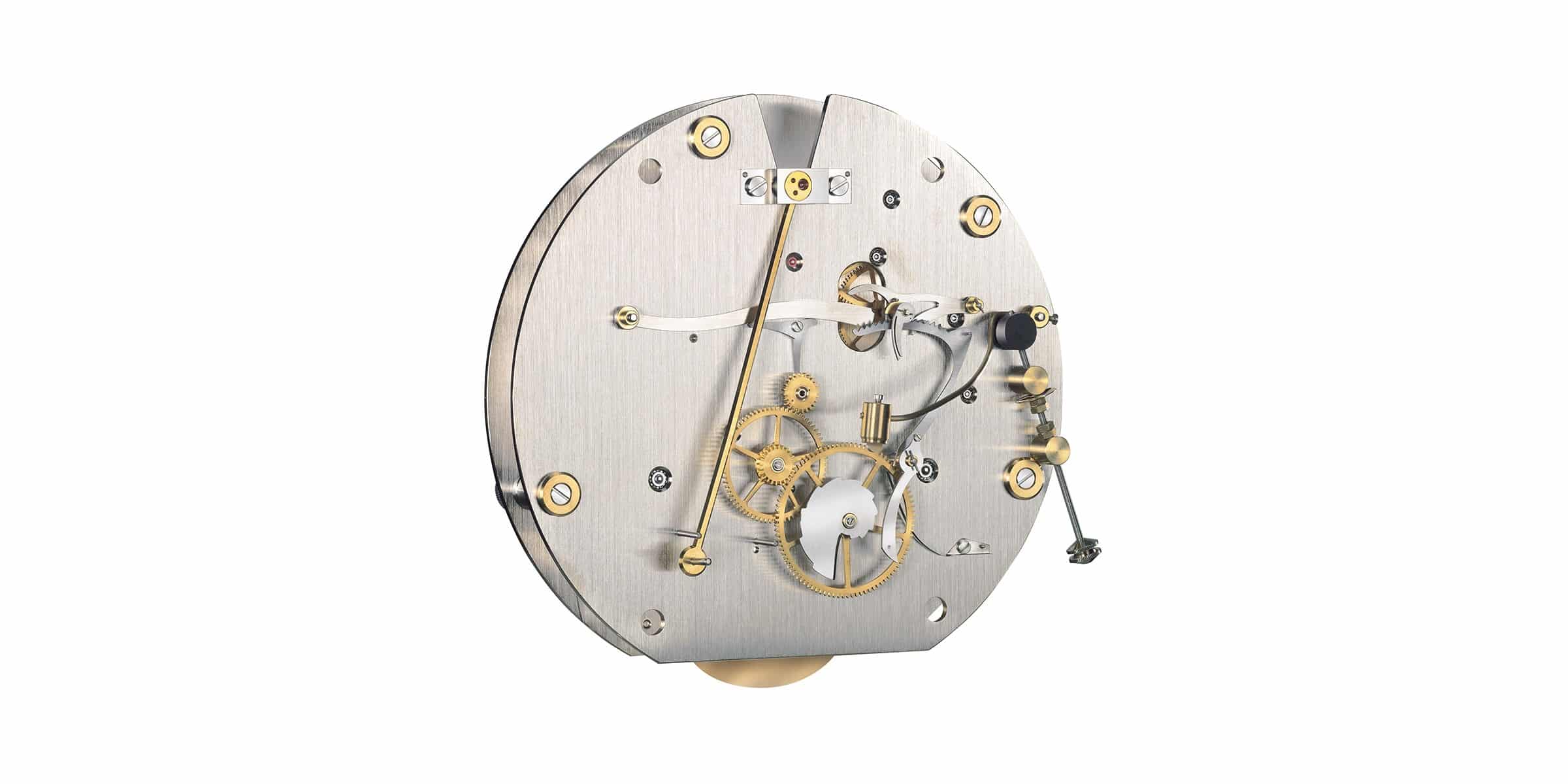

| Movement | Sattler calibre 1915 |
| Power reserve | 30 days |
| Drive | Weight 4,500 g with pulley with ball bearings |

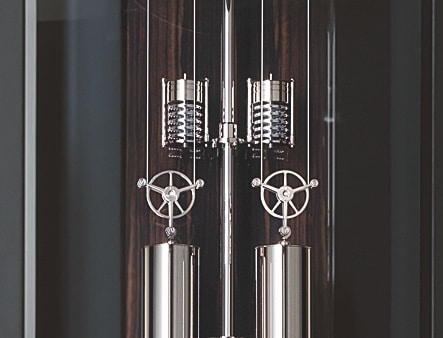

| Oscillator | Invar pendulum Ø 12 mm, temperature and air-pressure compensation, 5 aneroid capsules with air pressure display in mm/Hg |
| Ball bearings | 9 precision ball bearings |
| Jewel bearings | 6 in chatons, 2 agate anchor pallets |

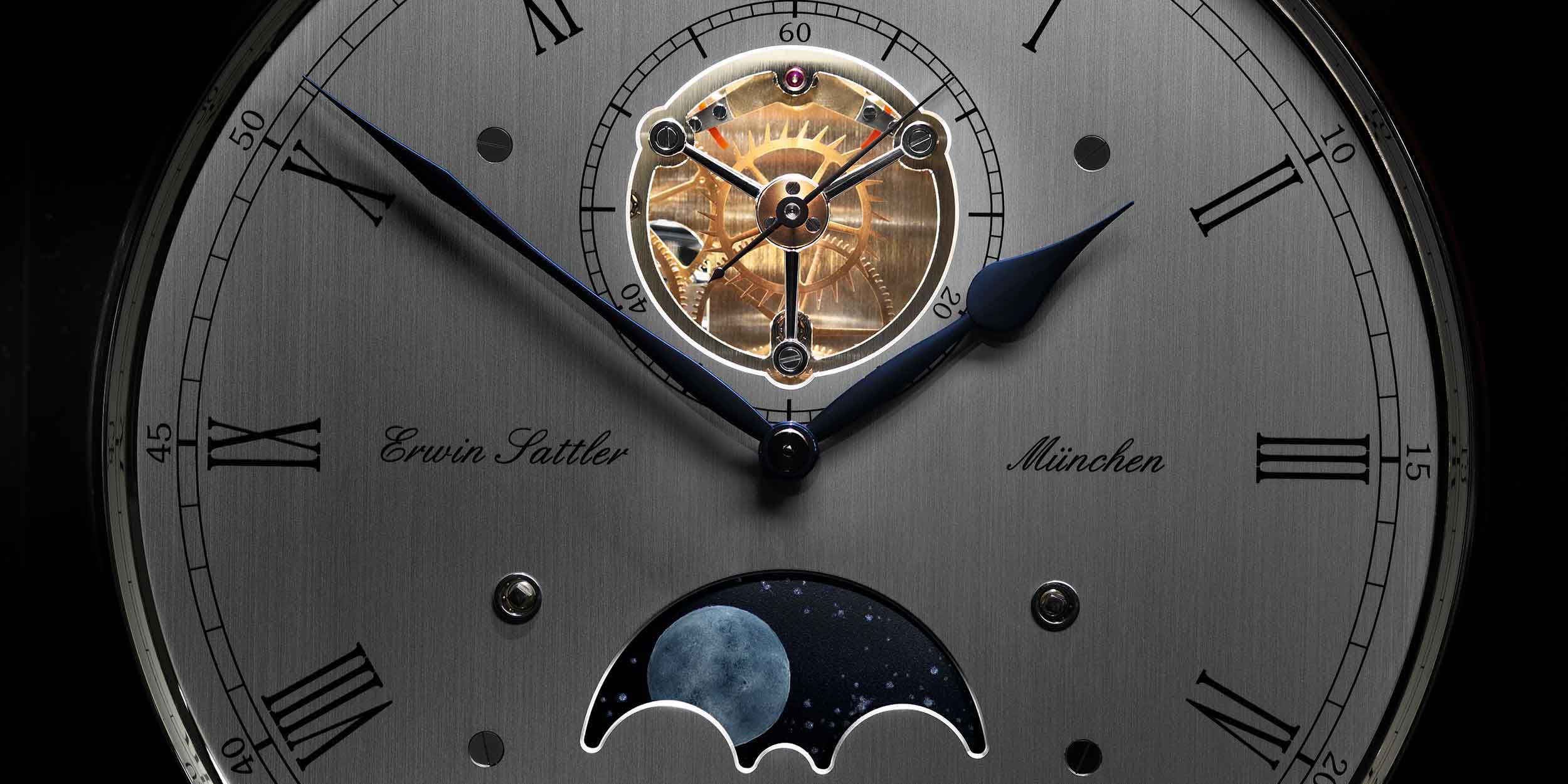

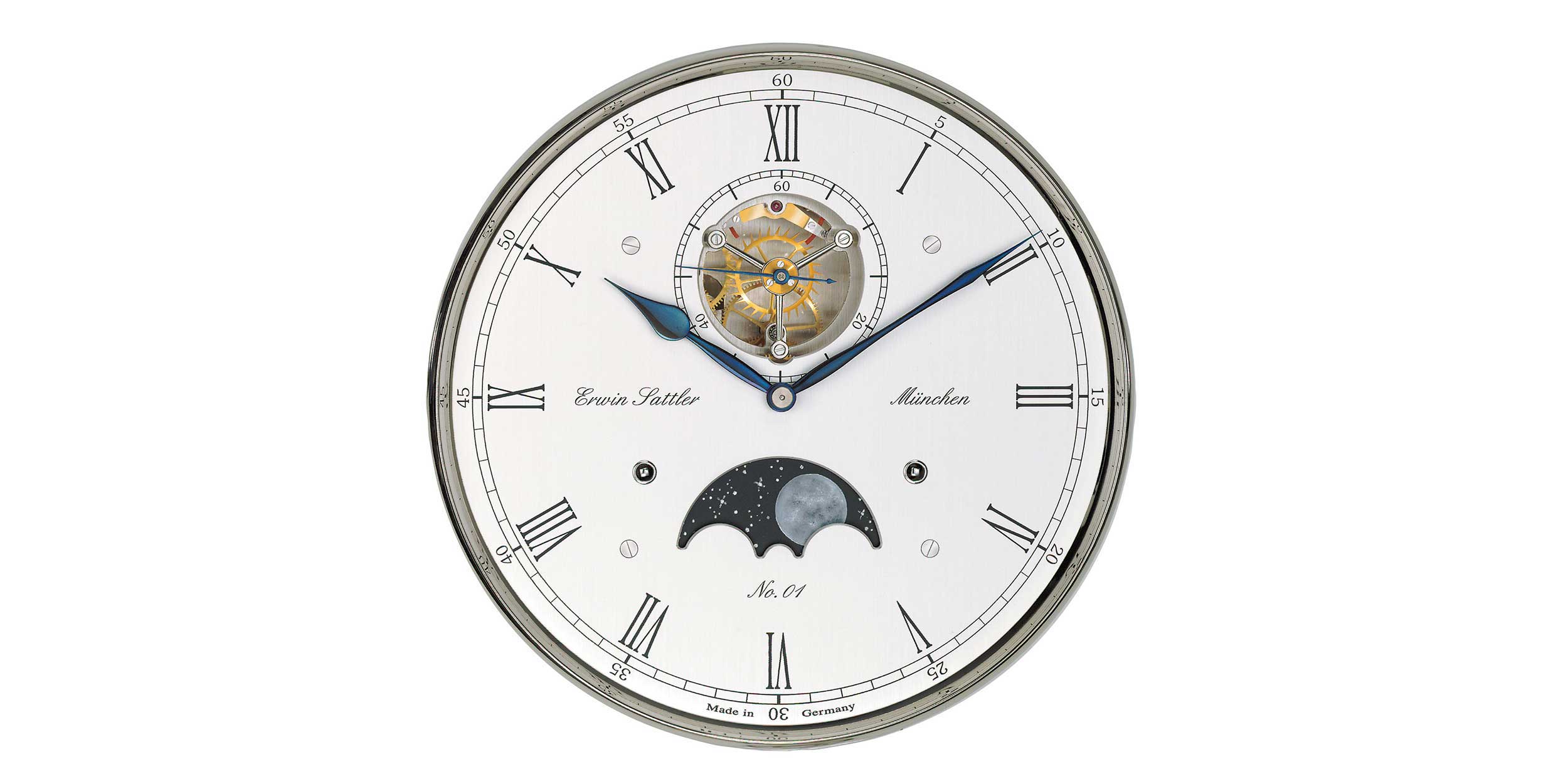

| Dial | Silver-plated, hand-painted moon disc, cutaway in seconds dial, visible escapement (Graham), date and day display |
| Hands | Blue steel hands, domed by hand |

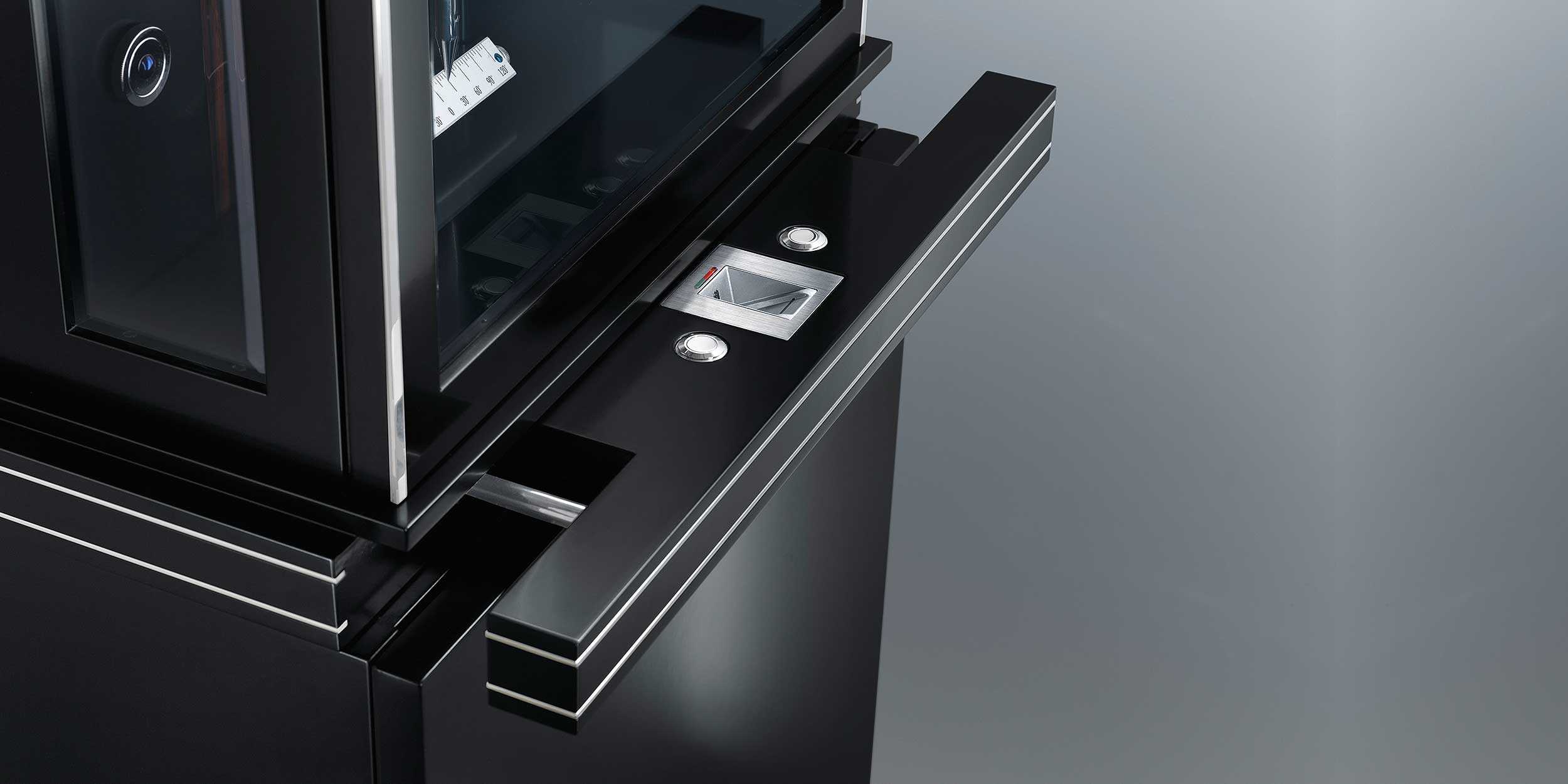

| Base | Clock base with safe |
| Winders | 16 precision watch winders, sideways extendable, individually programmable via WIFI, 16 high-power motors, 12 o’clock position |
| Beat rate | 3.600/h = 60/min |
| Thomas | Euro/VdS Category l - Insurance cover for private use up to €65,000.00 - Insurance cover for commercial use up to €20,000.00 - Lock: electronic locking system - Door hinge: DIN right Dimensions: - Ext.dimension: H/B/T 610/405/340 mm - Int. dimensions: H/B/T 504/312/221 mm - Doorway: H/B 504/265 mm - Weight: aprox. 110 kg |
CALCULATION OF THE MOON PHASE DISPLAY
- January
- February
- March
- April
- May
- June
- July
- August
- September
- October
- November
- December
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 2017
- 2018
- 2019
- 2020
- 2021
- 2022
- 2023
- 2024
25. Jan
24. Feb
25. Mar
24. April
23. May
22. June
21. July
19. Aug
18. Sept
17. Oct
15. Nov
15. Dec
Troja Sonata M
TREASURES ARE KEPT SAFE AND HIDDEN INSIDE A FASCINATING AND IMPRESSIVE PRECISION PENDULUM CLOCK
The base of the clock houses a safe which provides space for all kinds of treasures. To make full use of the depth that is gained here, 16 remote-controlled watch winders are also housed in the rear section of the case. Along with their technology partner, Beluwo®, the Erwin Sattler manufacture has developed new, large wristwatch-holders which provide enough space for larger timepieces. Each unit is equipped with its own precision motor. There is no remote control anymore. Controlling works only via Bluetooth, any smartphone or tablet, or via the operating element in the integrated tray in the housing. The Troja 16 M is equipped with the extraordinary movement from the Classica Secunda 1995, whose silver-plated dial emphasises the value of the lovingly handcrafted, domed hands. The pendulum, at a stately length of approximately one metre, swings once every second in an elegant and calming cadence.
The Troja is available with four different movements: Troja 16 M with the movement from the Classica Secunda 1995, Troja Lunaris M with the movement from the Secunda Lunaris, Troja Sonata M with the movement from the Secunda Sonata, Troja Opus Temporis with the movement from the Opus Temporis.
The power duration of the TROJA SONATA M is 30 days, an invar pendulum Ø 12 mm serves as a regulator, temperature and air pressure compensation, double barometer.
TROJA SONATA M has the following dimensions: height: 218 cm, width: 48 cm, (watch winder extended 70 cm), depth: 39 cm.
Yes, the TROJA SONATA M contains a hidden safe. This has the internal dimensions H/W/D 504/312/221 mm and offers itself as a storage place for your private treasures and valuables.
