Secunda Sonata
HIGHLIGHTS

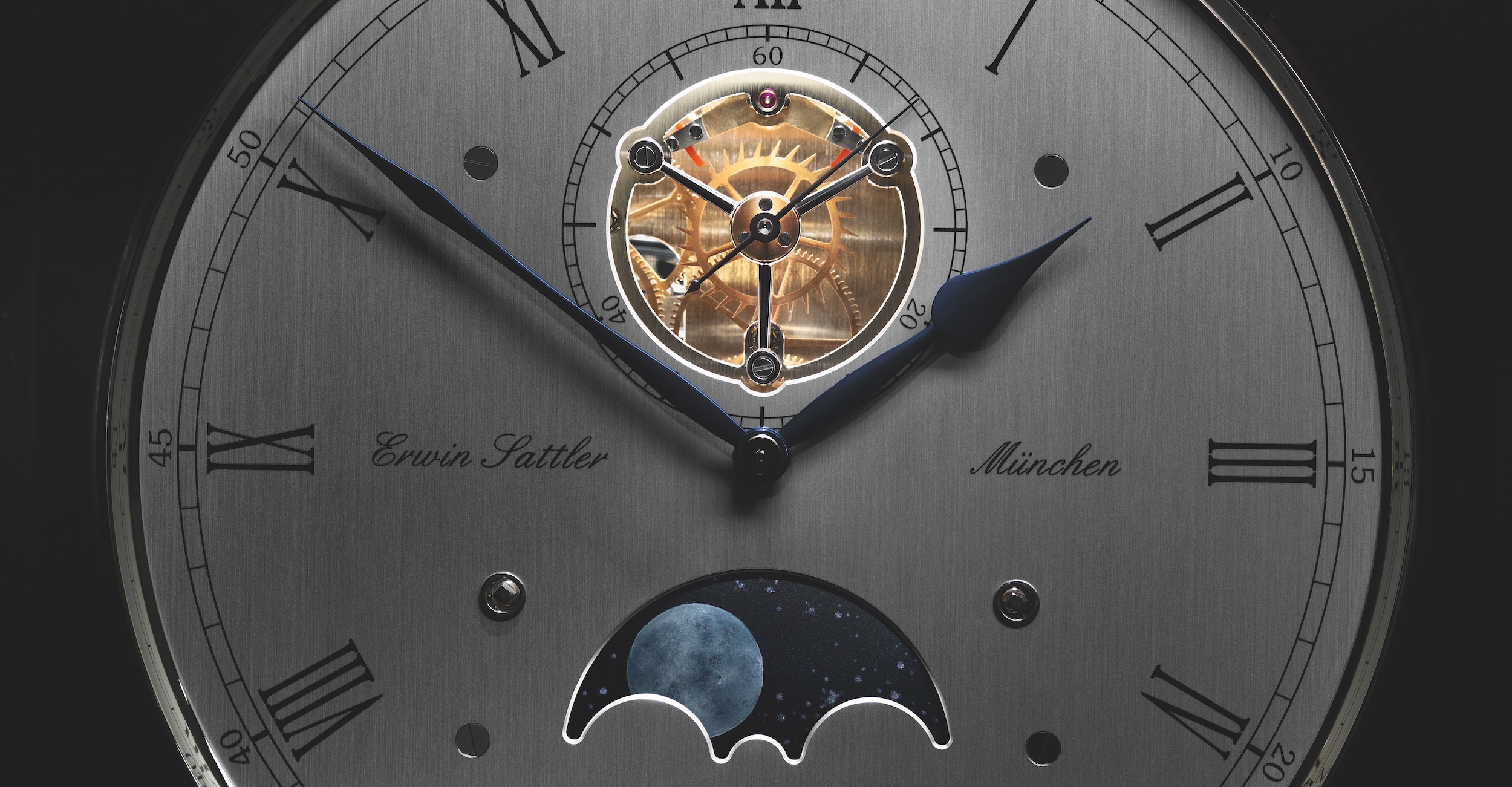

- Silver-plated dial with particularly large, hand-painted moon phase display
- Pleasant, rich-sounding half-hour strike train
- Seconds pendulum with twin barometer and temperature compensation
A HARMONY OF COMPOSITION – THE SECUNDA SONATA BRINGS TOGETHER THE PHASES OF THE MOON AND THE CHIMING OF THE PASSING TIME
| Case | - Black varnish with metal inlays - Black varnish with metal inlays and high-polished macassar cassette Glass window in the top of the case Door with magnetic closure Height: 145 cm, width: 37 cm, depth: 18 cm |
| Crystals | Bevelled mineral glass |

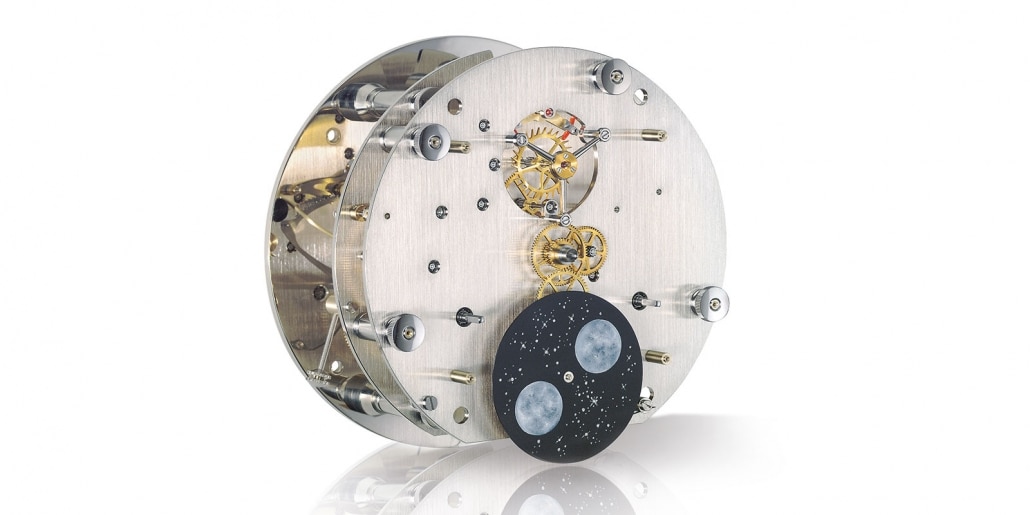

| Movement | Sattler calibre 2015, cutaway in the front plate, three arms escapement wheel bridge domed and polished by hand, visible escapement (Graham) from the front |
| Power reserve | 30 days |
| Drive | Weight going train 4,500 g with pulley with ball bearings, weight strike train 5,000 g with pulley with ball bearings |
| Oscillator | Invar Pendulum Ø 12 mm, temperature and air-pressure compensation, twin barometer |
| Ball bearings | 20 precision ball bearings |
| Jewel bearings | 4 in chatons, 2 agate anchor pallets |

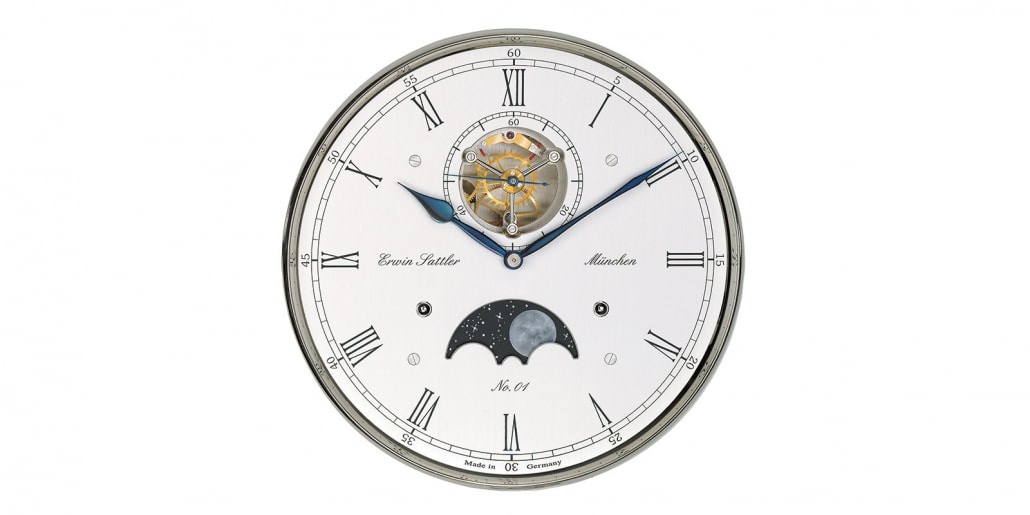

| Dial | Silver-plated, hand-painted moon disc, cutaway in seconds dial |
| Hands | Blue steel hands, domed by hand |
| Strike train | Half-hour rack strike train with gong, strike train silencer |
| Beat rate | 3,600/h = Precision seconds pendulum clock |
| Weight | 59 kg |
CALCULATION OF THE MOON PHASE DISPLAY
- January
- February
- March
- April
- May
- June
- July
- August
- September
- October
- November
- December
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 2017
- 2018
- 2019
- 2020
- 2021
- 2022
- 2023
- 2024
25. Jan
24. Feb
25. Mar
24. April
23. May
22. June
21. July
19. Aug
18. Sept
17. Oct
15. Nov
15. Dec
Secunda Sonata
A HARMONY OF COMPOSITION – THE SECUNDA SONATA BRINGS TOGETHER THE PHASES OF THE MOON AND THE CHIMING OF THE PASSING TIME
In addition to its pleasant chime, the clock also has a handpainted moon phase display that lends a special appeal to the silver-plated dial. The combination of these two functions brings together visual beauty and acoustic splendour. As is customary with the precision pendulum clocks from Erwin Sattler, the pendulum of the Secunda Sonata is equipped with temperature and air-pressure compensation.
The gold-plated gear train, with a 30-day power reserve, is fully fitted with ball bearings and jewel bearings, while the classic Graham escapement is embellished with agate pallets. This exclusive ensemble is housed in a fine, contemporary case finished with metal inlays and a macassar cassette in the back.
The power reserve of the SECUNDA SONATA is 30 days.
SECUNDA SONATA has the following dimensions: height: 145 cm, width: 37 cm, depth: 18 cm.
